Mini Smart Tweezer LCR Meter/ESR Meter, Mini Smart SMD Tester Auto Identify Resistors/Capacitors/Inductors/Diode/Voltage/Frequency, LCR Meter Tweezer Measure Frequencies of 100Hz /1KHz /10KHz

Specification: Capacitance range: 1pF-20mF Inductance range: 1μh-60H Resistance range: 1mΩ-10MΩ Diode: On voltage 0.7V Frequency test: 100Hz, 1kHz, 10KHz Level test: 0.3V, 0.6V RMS Parameter display: L、C、R、D、Q、RS Display: 1.14'' color screen Charging Interface: Type-C, 5V/A Power Supply: 400mAh lithium battery Auto recognition measurement: Support Replaceable tweezer head: Support Auto shutdown: Support Data hold: Support History record: Connect to PC to view and export Language: Chinese, English Size: 146*30*18mm Gear Position:Auto Range、Resistance Rang Package Includes: 1Pcs*Mini Digital LCR Tweezer Multimeter 1Pcs*USB Data Cable 1Pcs*User Manual 1Pcs*Storage Bag

• 【Intelligent Recognition Test Clip】 This LCR meter can automatically identify resistors ranging from 10mΩ-10MΩ, capacitors from 1pF-20000μF (D value and ESR), and inductors from 1μH-60H (Q value and ESR),Diode,Voltage,Frequency. Frequencies: 100Hz, 1KHz, and 10KHz, with signal levels of 0.3Vrms and 0.6Vrms
• 【High-Quality Bridge Tweezers】 These mini digital LCR tweezer multimeter are designed for SMD chip testing, making it easy to measure chip components and facilitating batch selection of components. The bridge tweezers can easily determine the quality of capacitors by measuring the D value, ensuring accurate measurements with a maximum precision of 0.5%
• 【Portable Design】 With a simple operation interface and a replaceable tweezers head design, you only need to loosen the screws, align the tweezers head with the slot, insert it, and tighten the screws to complete the replacement. It supports Type-C charging and provides up to 12 hours of battery life, so you can take it anywhere

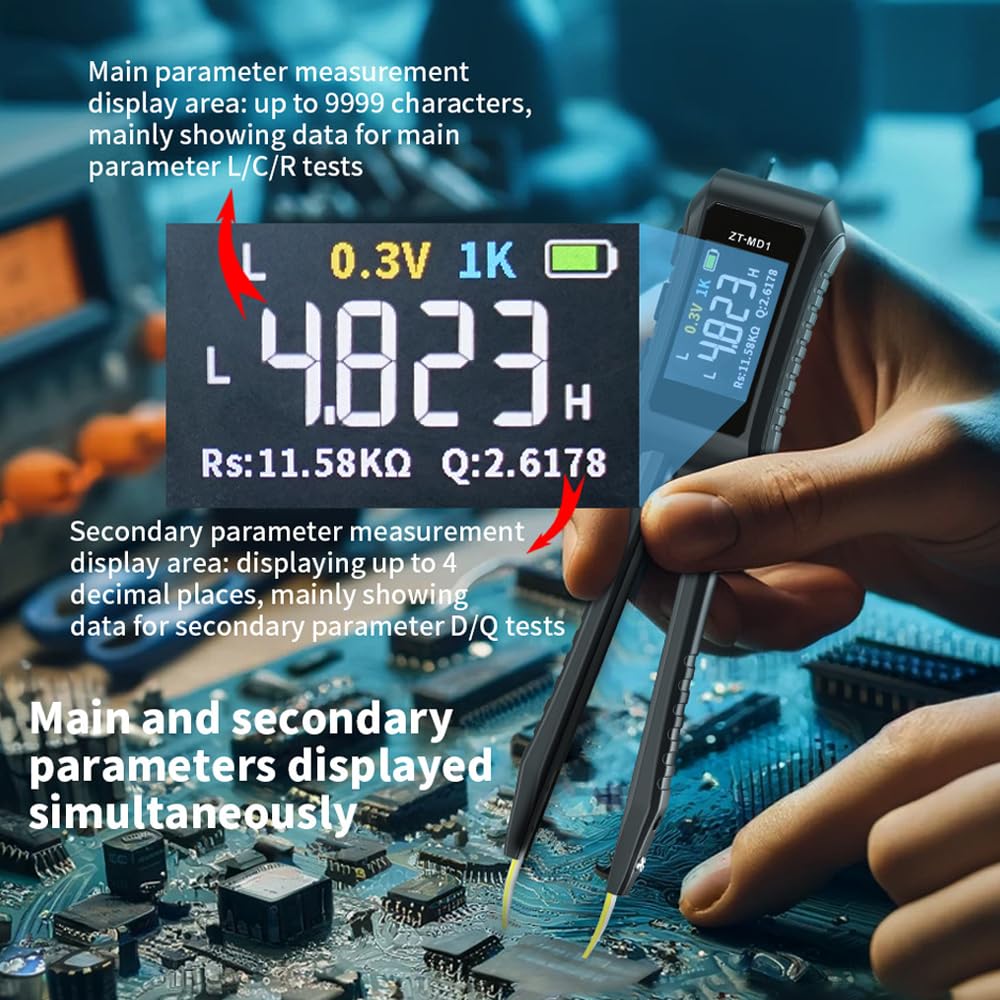

• 【Convenient Measurement】 The screen can be rotated to adapt to different application scenarios, providing more precise measurement stability. It features an LCD color display with high-definition visibility, making it clear even in dark environments
• 【Wide Application】 These mini digital tweezer are widely used in product development, education, the electronics industry, repair services, product testing, and the medical field, meeting your diverse work needs
